Description

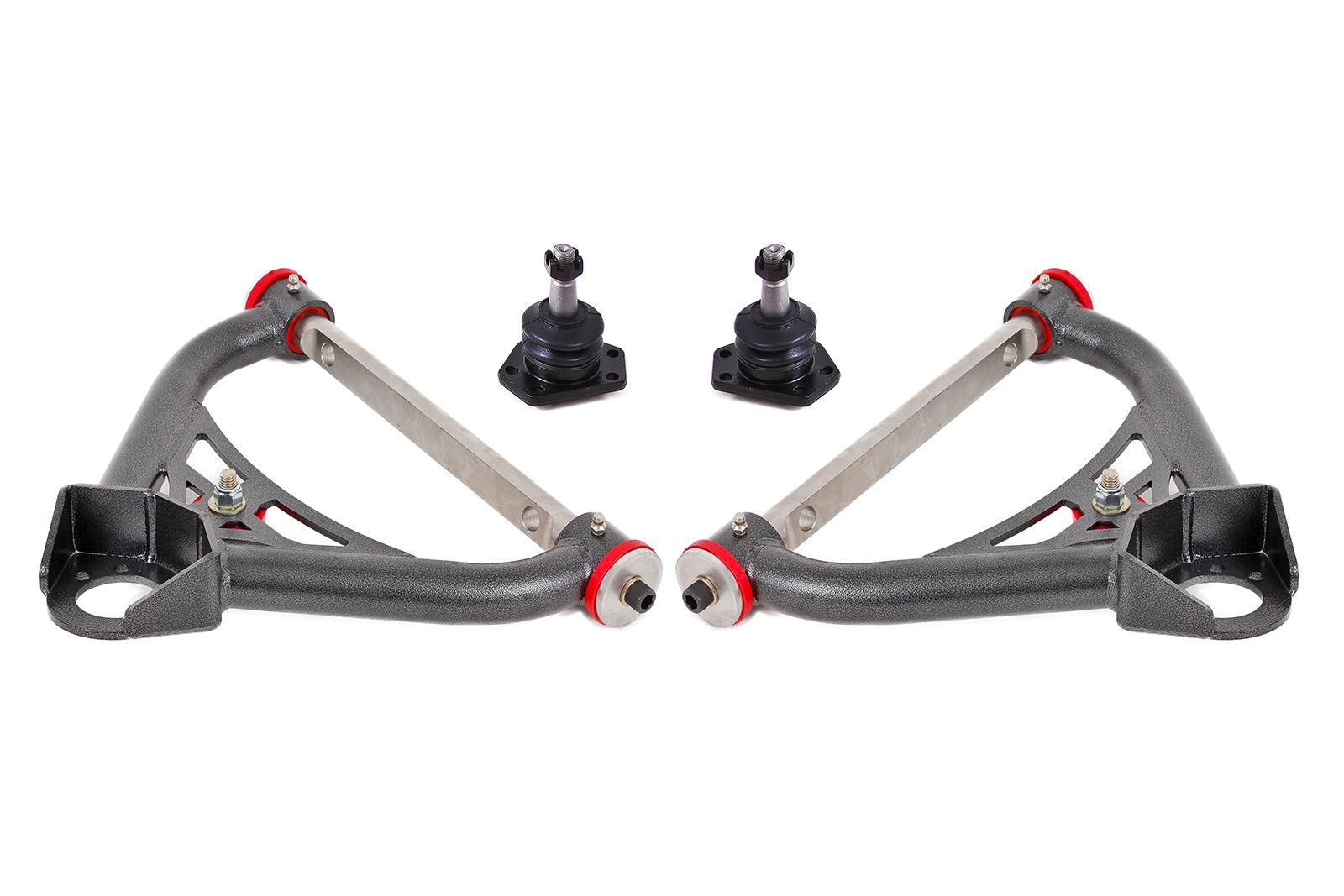

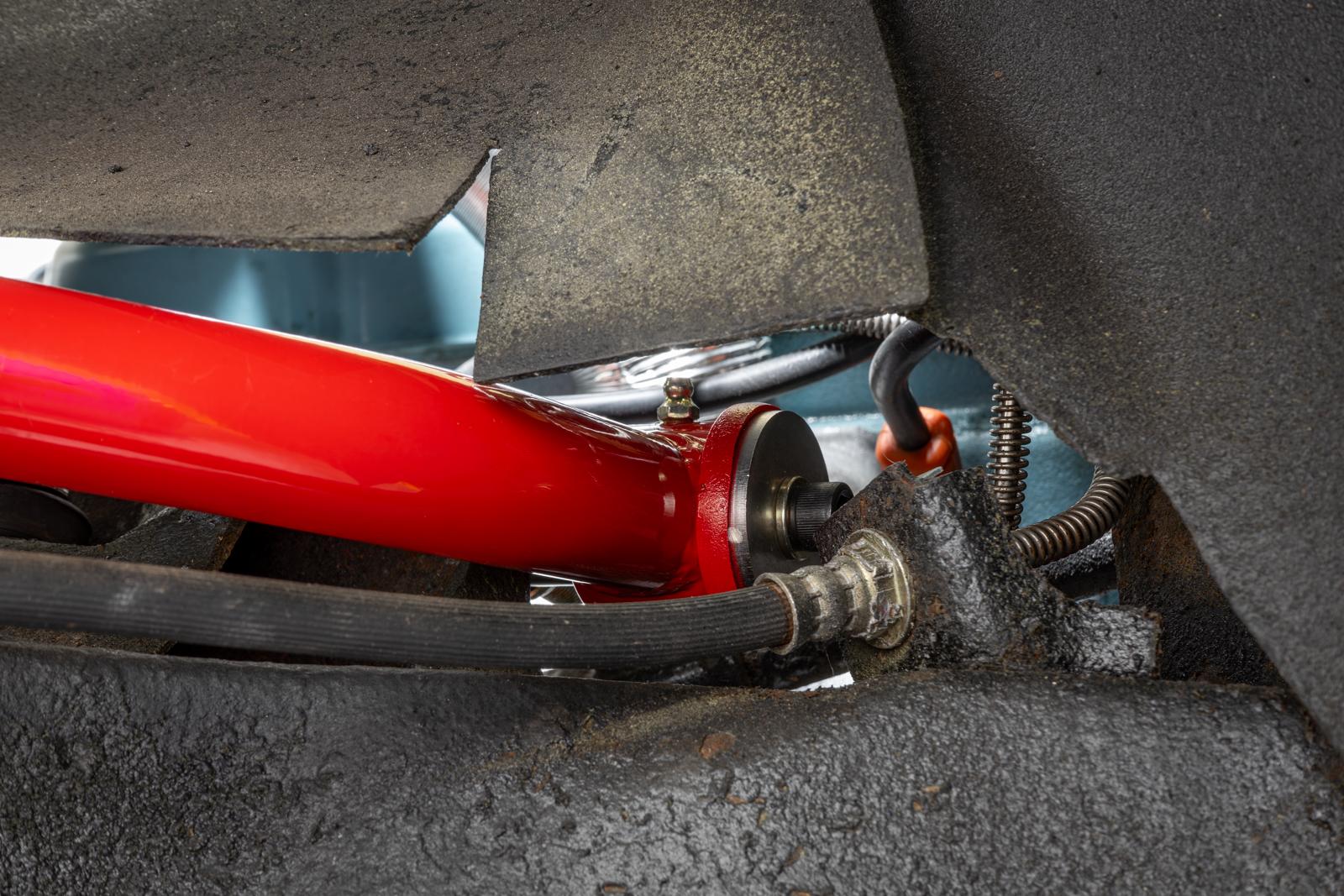

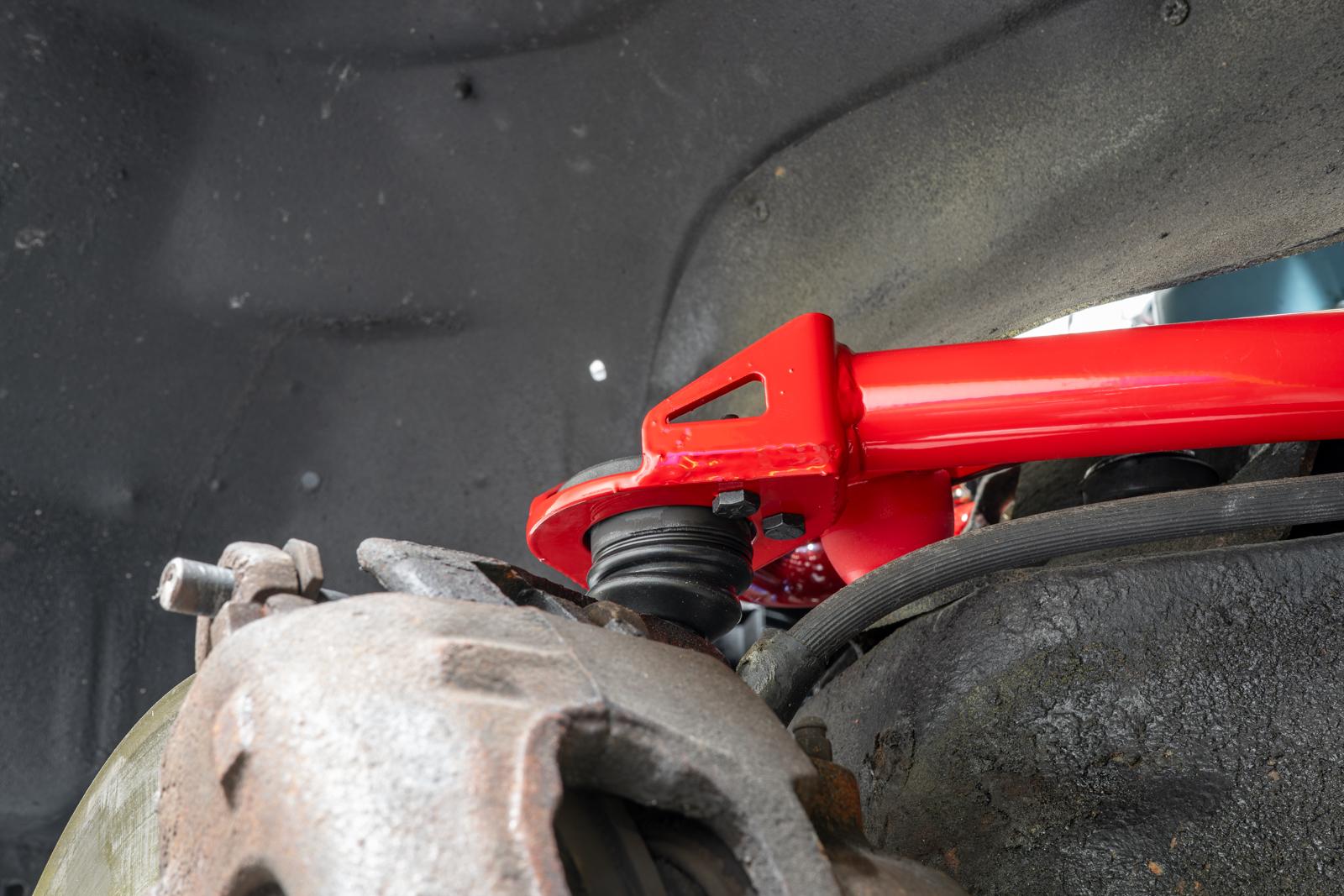

A-arms are one of the most important, yet overlooked suspension components. They are the direct link between the front wheels and the chassis. Any deflection causes a change in alignment, which results in poor performance and driving feel. Fabricated from heavy-duty 1.25-inch, 0.095-inch wall DOM tubing with laser-cut, CNC-formed steel plate for extra strength, deflection is eliminated with A-arms from BMR Suspension. BMR's AA015 Upper A-arms are equipped with CNC machined, nickel-plated, dual-offset cross-shafts with heavy-duty stainless bushing retainers. They come pre-assembled with new polyurethane bump stops. New upper ball joints are included as well. Greasable, 95-durometer bushings add a solid, more responsive feel over the stock rubber bushings. BMR's bushings are internally fluted, which allows grease to evenly coat the inner sleeve. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated. This efficient lubrication ensures quiet, reliable operation over the life of the bushings.

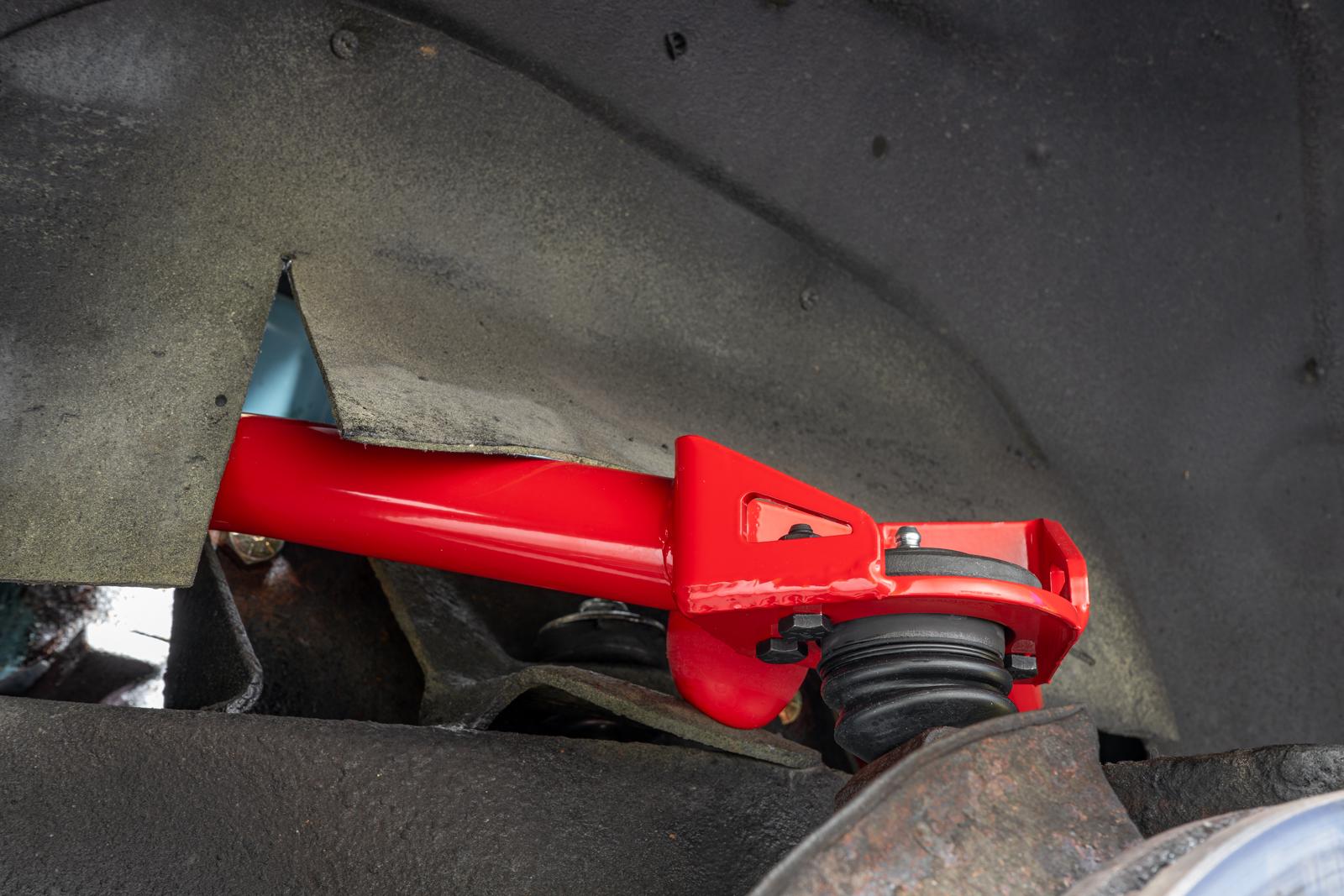

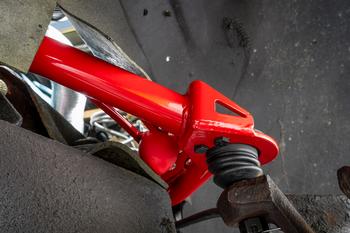

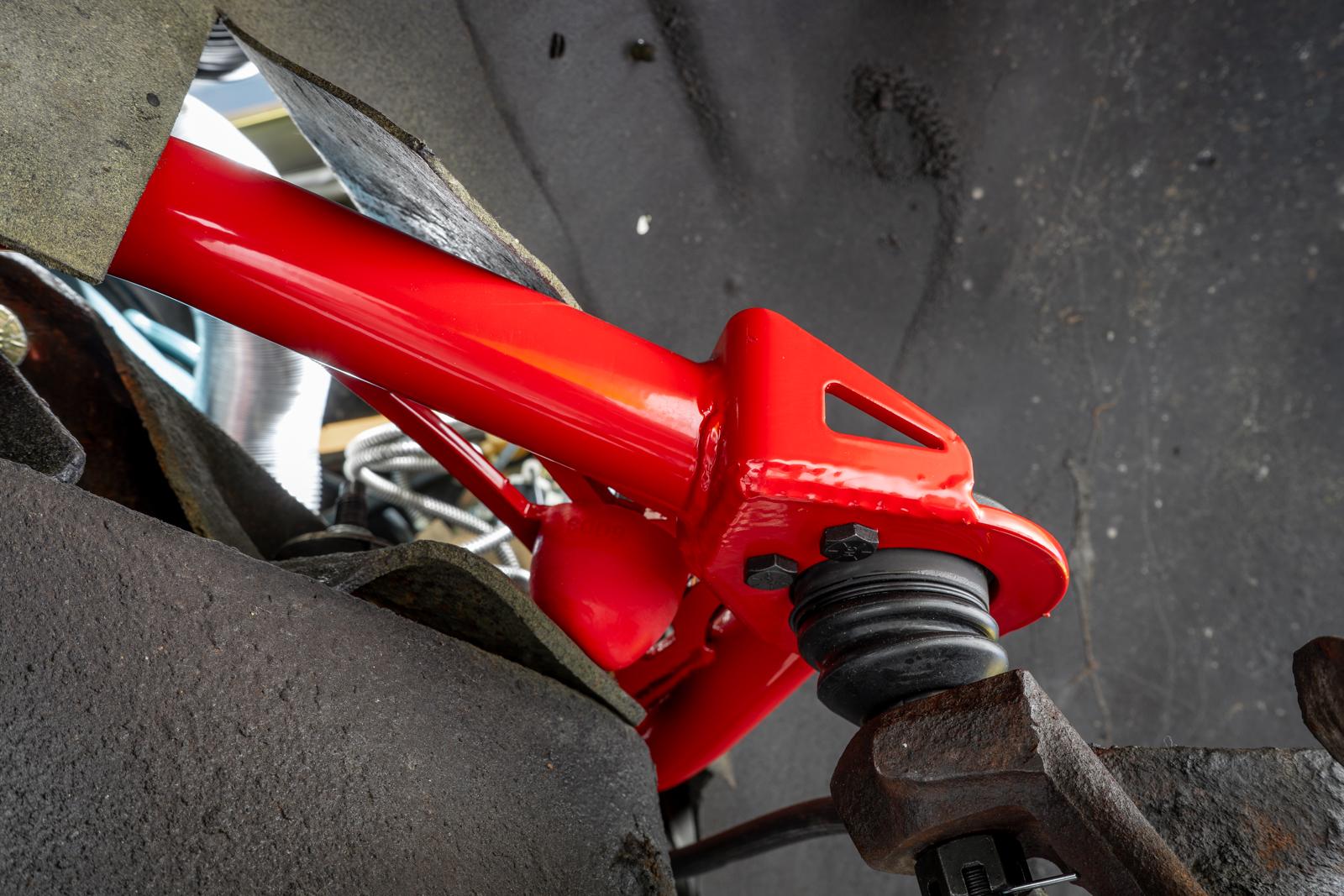

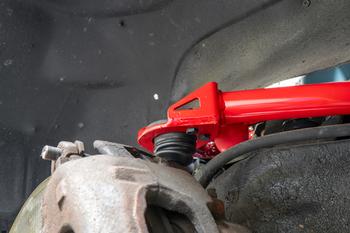

BMR's AA015 Upper A-arms eliminate deflection, greatly improving steering feel and response in normal and performance driving situations. The compact design provides additional header clearance over stock A-arms, allowing you to run larger primary tubes for high-horsepower applications. The polyurethane bushings add strength and reduce deflection over the stock rubber bushing, while still absorbing much of the NVH. The means you get a great blend of performance and comfort. Designed for street performance, drag race, handling, and pro-touring applications. These A-arms also include improved geometry and increased lateral grip during cornering situations. They feature 2 degrees of additional caster for improved high-speed stability. Combine with BMR Lower A-arms, and you get 4 additional degrees of positive caster over stock (2 degree from the uppers and 2 degrees from the lowers). The upper arms also have revised cross shaft geometry and shorter overall length, requiring less shim stack to achieve negative camber on lowered cars, or race and pro touring vehicles with aggressive alignments. The combination of cross shaft design and the shortened overall A-arm length gives you an improved camber curve through the front suspension's range of motion.

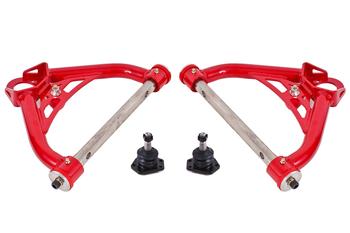

BMR Suspension AA015 Non-Adjustable Upper A-arms are available in black hammertone and red powdercoat for long-lasting good looks. Installation time is 3-4 hours. Proudly made in the U.S.A.

Control arm hardware kit RH009 (Includes upper and lower control arm hardware - Highly Recommended) also available.

Features

- Fits 1970-1981 GM F-Body and 1975-1979 GM X-Body
- Eliminates upper A-arm deflection
- Improves steering feel and response for normal and performance driving
- Laser-cut, CNC-formed plate steel braces for extra strength
- Additional caster adjustability for increased high-speed stability
- Fixture welded for precise fit
- Dual-offset cross-shafts for minimizing shim stack
- Internally fluted, high durometer polyurethane bushings
- Two additional degrees of positive caster built into A-arms

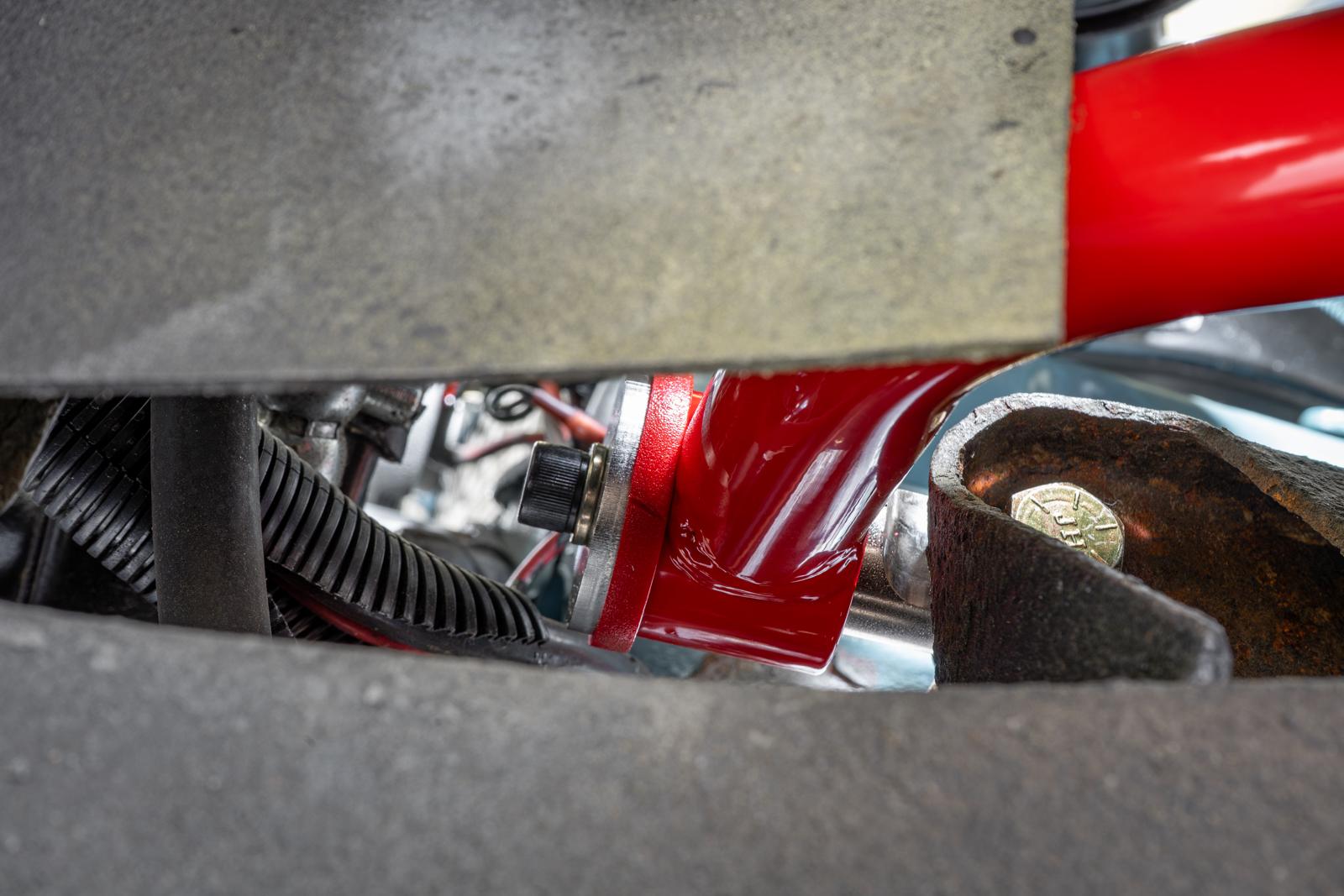

- Additional header clearance
- Pre-assembled with new polyurethane bump stops
- Includes new upper ball joints
- Durable powdercoat finish
- Proudly designed in the U.S.A.
- Proudly made in the U.S.A.
