Description

***This product is available to retail customers only. It is not available to dealers or distributors.***

BMR Suspension has taken the guesswork out of making significant handling improvements to the 1993-2002 GM F-Body, and put it in one convenient package. Countless hours of design, engineering, and track testing gives you the best combination of parts for improved handling on the street and track. Matching specific components provides a great blend of performance, aesthetics, and comfort.

BMR's KONI Handling Package (KHP003) addresses key points of the suspension to improve the "system."? BMR Suspension designed the KHP003 to work well for street performance and handling applications. BMR's KONI Handling Package is 100-percent bolt-in and require zero cutting, welding, or modification to the chassis or suspension. Whether you simply want a better handling daily driver, or the ultimate track day car, rely on BMR Suspension!

Koni Shocks (KON-F4-F3)
Kit consists of (2) Koni adjustable front shocks #8241-1139, and (2) Koni off-car adjustable rear shocks #30-1265

Lowering Springs (SP001)
BMR Suspension believes the right springs go beyond looks, your F-body needs to perform, too! All BMR springs are manufactured from chrome silicon high-tensile spring wire, and are cold wound on a CNC coiling machine. The CNC coiling head can adjust the spring diameter in real time to ensure that every spring is exactly the same. This guarantees that your right spring matches your left spring. Every BMR spring is compressed solid at the factory, not once, but twice. This gives the spring its permanent set, and guarantees no sag. BMR springs are stress-relieved at 750 degrees F, ensuring most stresses induced during the winding process are eliminated. All springs are then shot-peened to eliminate residual surface stresses. Many spring manufacturers skip this step, but BMR insists on this operation as part of our spring manufacturing process. Every spring is computer tested as the last step, every spring, not just a sample from each batch. Each spring is loaded in the spring tester at the factory, then compressed and the CNC load cell measures the force for a variety of spring lengths. This allows BMR to offer a LIFETIME WARRANTY against spring sag.

Blending aesthetics and performance, BMR has designed the SP001 for the street performance crowd who want to use their cars in a variety of application. These springs will drop the front end of your GM F-body 1.25-inches, and feature a fine-tuned spring rate to give you great handling and a smooth ride. The linear spring rate offers plenty of support, keeping the body flat and level in the corners, while remaining soft enough for a comfortable ride on any road.

Sway Bars (SB026)
Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR Suspension's SB026 front and rear sway bar kit was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-wall 35mm (front) and 25mm (rear) DOM tubing, the SB026 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. The sway bar mounts to the car using polyurethane bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keeps grease in the bushing. The steel sway bar mounting brackets are reinforced to minimize deflection.

BMR Suspension designed the SB026 sway bar for street performance, autocross, and road race applications. The large sway bar give you the ability to drive to and from the road course or autocross and still out handle the competition with the same sway bar. The SB026 sway bars give you a 129% increase (front) and a 149% increase (rear) in sway bar rate. These rate increases allow you to drive harder through corners with minimal body roll. The hollow design allows for loads of strength in the lightest package possible. This means increased performance with no sacrifices. The SB026 attaches to your F-body with 88-durometer polyurethane bushings, reducing the deflection from the stock rubber bushings. This allows for more sway bar control, and more control equals better handling.

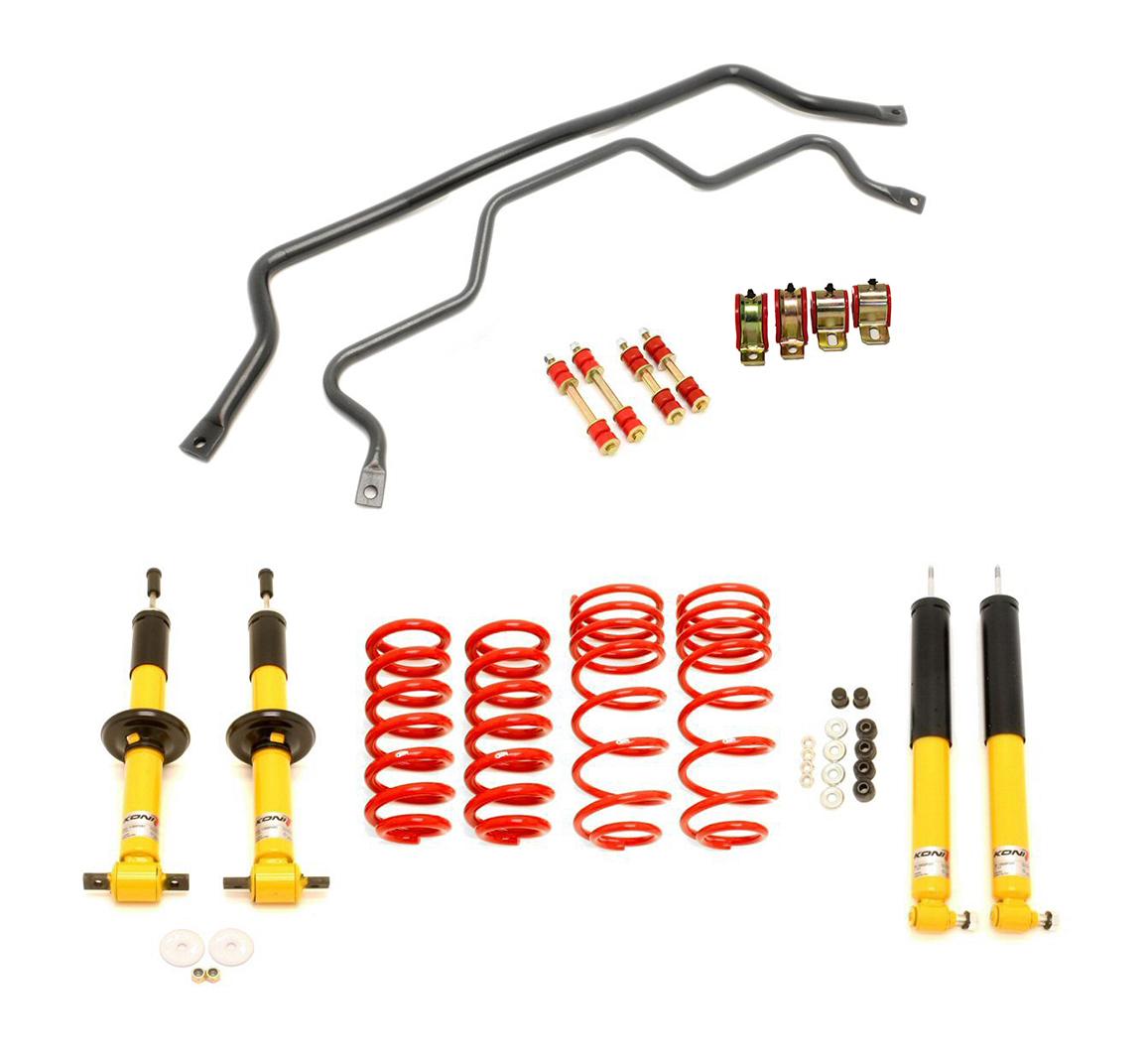

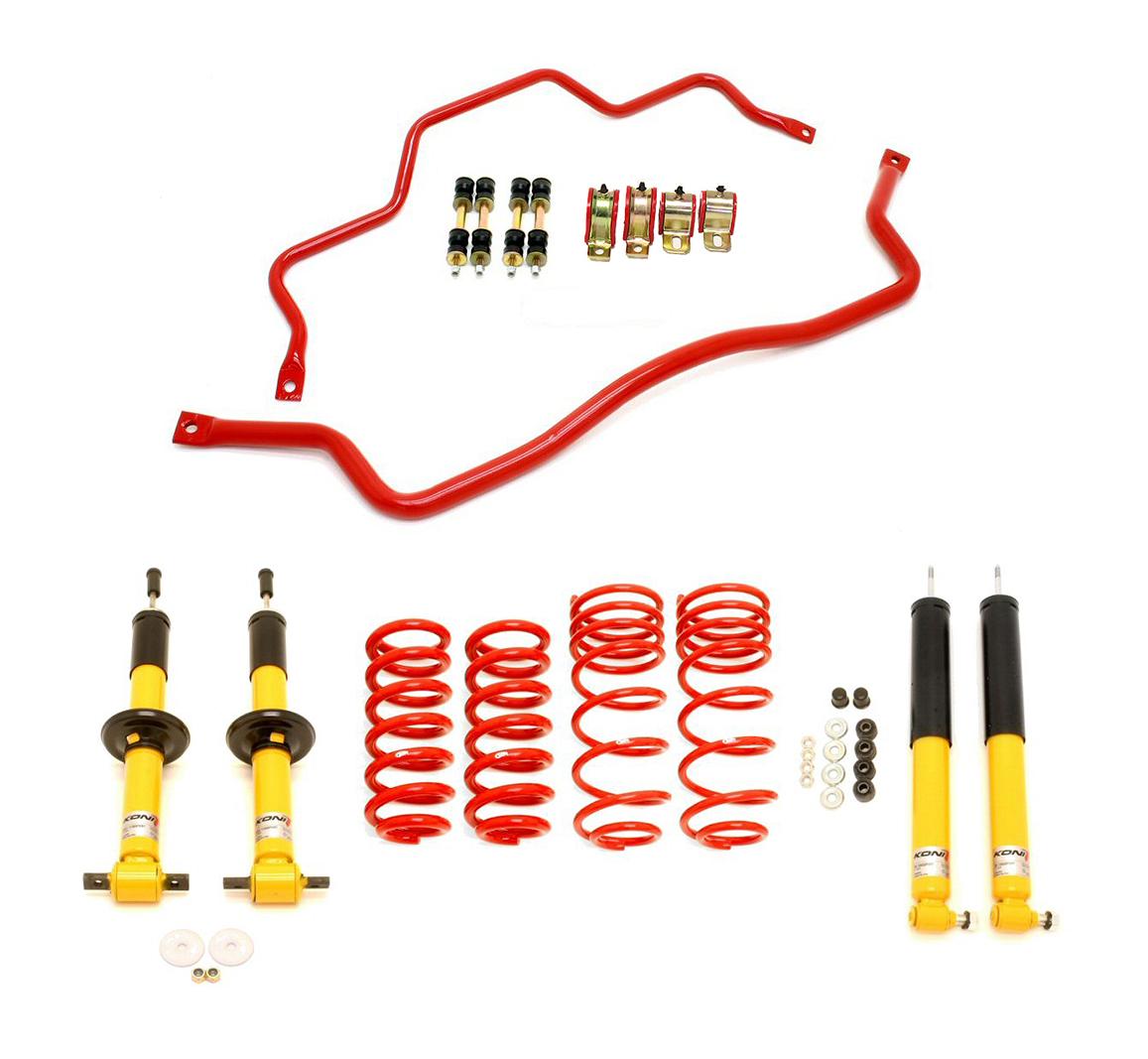

BMR Suspension's KHP003 KONI Handling Package is available in black hammertone and red powdercoat for long-lasting good looks. Installation time is 5-6 hours. Proudly made in the U.S.A.

Package Includes
Qty	Price	Part#	Product
1	$579.95	SB026	Sway Bar Kit with Bushings, Front (SB001) and Rear (SB003)
1	$299.95	SP001	Lowering springs, set of 4, 1.25" drop
1	$1,079.95	KON-F4-F3-YE	Koni Shocks, Front 8241-1139SP, Rear 30-1265SP, Set of 4
3	$1,959.85  Parts $70.85  Discount $1,889.00  Total

Features

- Fits 1993-2002 GM F-Body
- 100% Bolt-on
- Specific combination of parts
- Fully street and track tested
- Greatly improves handling
- Adjustable and non-adjustable components
- Heavy-Duty construction
- Durable powdercoat finish
- 5-6 hour installation time
- Proudly designed in the U.S.A.
- Proudly made in the U.S.A.

Applications

1993 - 2002 Chevrolet Camaro

1993 - 2002 Pontiac Firebird

Available Colors

Black Hammertone		Red
