Description

A-arms are one of the most important, yet overlooked suspension components. They are the direct link between the front wheels and the chassis. Any deflection causes a change in alignment, which results in poor performance and driving feel. Fabricated from a combination of heavy-duty 1.25-inch, 0.095-inch wall and 1.625-inch, 0.120-inch wall DOM tubing with laser-cut, CNC-formed plate steel braces for extra strength, deflection is eliminated with A-arms from BMR Suspension. BMR's AA029 upper and lower A-arm kit includes upper A-arms equipped with CNC machined, nickel-plated, dual-offset cross-shafts with heavy-duty stainless bushing retainers. They come pre-assembled with new polyurethane bump stops, and new upper ball joints are included. The uppers and lowers have greasable, 95-durometer bushings add a solid, more responsive feel over the stock rubber bushings. BMR's bushings are internally fluted, which allows grease to evenly coat the inner sleeve. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated. This efficient lubrication ensures quiet, reliable operation over the life of the bushings.

BMR's AA029 Upper and lower A-arms eliminate A-arm deflection, greatly improving steering feel and response in normal and performance driving situations. The compact design provides additional header clearance over stock A-arms, allowing you to run larger primary tubes for high-horsepower applications. The polyurethane bushings add strength and reduce deflection over the stock rubber bushing, while still absorbing much of the NVH. The means you get a great blend of performance and comfort. Designed for street performance, drag race, and handling, and pro-touring applications, BMR upper A-arms are engineered to provide 2 additional degrees of positive caster for increased high-speed stability. Combine with BMR Lower A-arms, and you get 4 additional degrees of positive caster (2 degree from the uppers and 2 degrees from the lowers), providing up to 6 degrees of total positive caster over stock. This gives you improved geometry and increased lateral grip during cornering situations. The upper arms also have revised cross shaft geometry and shorter overall length, requiring less shim stack to achieve negative camber on lowered cars, or race and pro touring vehicles with aggressive alignments. The combination of cross shaft design and the shortened overall A-arm length gives you a improved camber curve through the front suspension's range of motion.

BMR Suspension AA029 Non-Adjustable Upper and lower A-arms are available in black hammertone and red powdercoat for long-lasting good looks. Installation time is 4-5 hours. Proudly made in the U.S.A.

Control arm hardware kit RH006 (Includes upper and lower control arm hardware - Highly Recommended) also available.

***NOTE: This product is designed for cars with the bumpstops installed on the front side of the lower A-arm. See additional info below.***

1967-69 F-Body cars had varying bumpstop locations.

Generally speaking 1967 model year cars had bumpstops located on the front sub-frame which made contact with the lower A-arm.

Cars made during the 1968 model year had bumpstops located on the front side the lower A-arm.

Cars from 1969 model year usually had bumpstops located on the rear side of the A-arm

This specific A-arm is designed for cars with the bump stops located on the front of the A-arm.

*BE SURE TO INSPECT THE LOCATION OF THE BUMPSTOP LOCATION ON YOUR SUB-FRAME BEFORE ORDERING.

Control arm hardware kit RH006 (Includes upper and lower control arm hardware - Highly Recommended) also available.

Features

- Fits 1967-1969 GM F-Body and 1968-1974 GM X-Body
- Eliminates upper and lower A-arm deflection
- Improves steering feel and response for normal and performance driving
- Increased high-speed stability
- Laser-cut, CNC-formed plate steel braces for extra strength
- Fixture welded for precise fit
- Dual-offset cross-shafts for minimizing shim stack
- Requires less shim stack for negative camber than OE arms
- Internally fluted, high durometer polyurethane bushings
- Two additional degrees of positive caster built into a-arms
- Adds additional headers clearance
- Pre-assembled with new polyurethane bumpstops, and lower ball joints
- Includes new upper ball joints
- Durable powdercoat finish
- Proudly made in the U.S.A.

Applications

1967 - 1969 Chevrolet Camaro

1967 - 1969 Pontiac Firebird

Available Colors

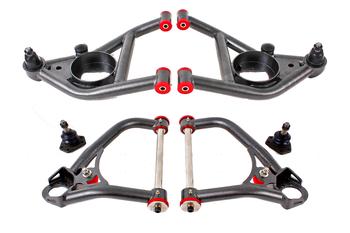

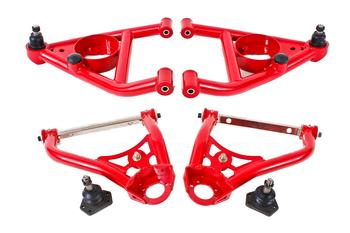

Black Hammertone		Red

Installation

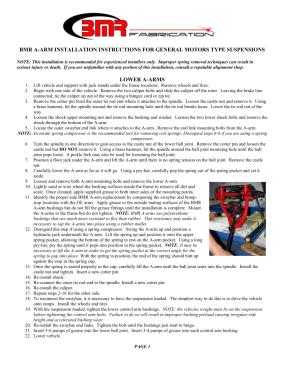

Click on the page above to view or download installation instructions for AA029
