Next BMR Category BMR Suspension - 2024 - 2024 Mustang - CBK774
CBK774

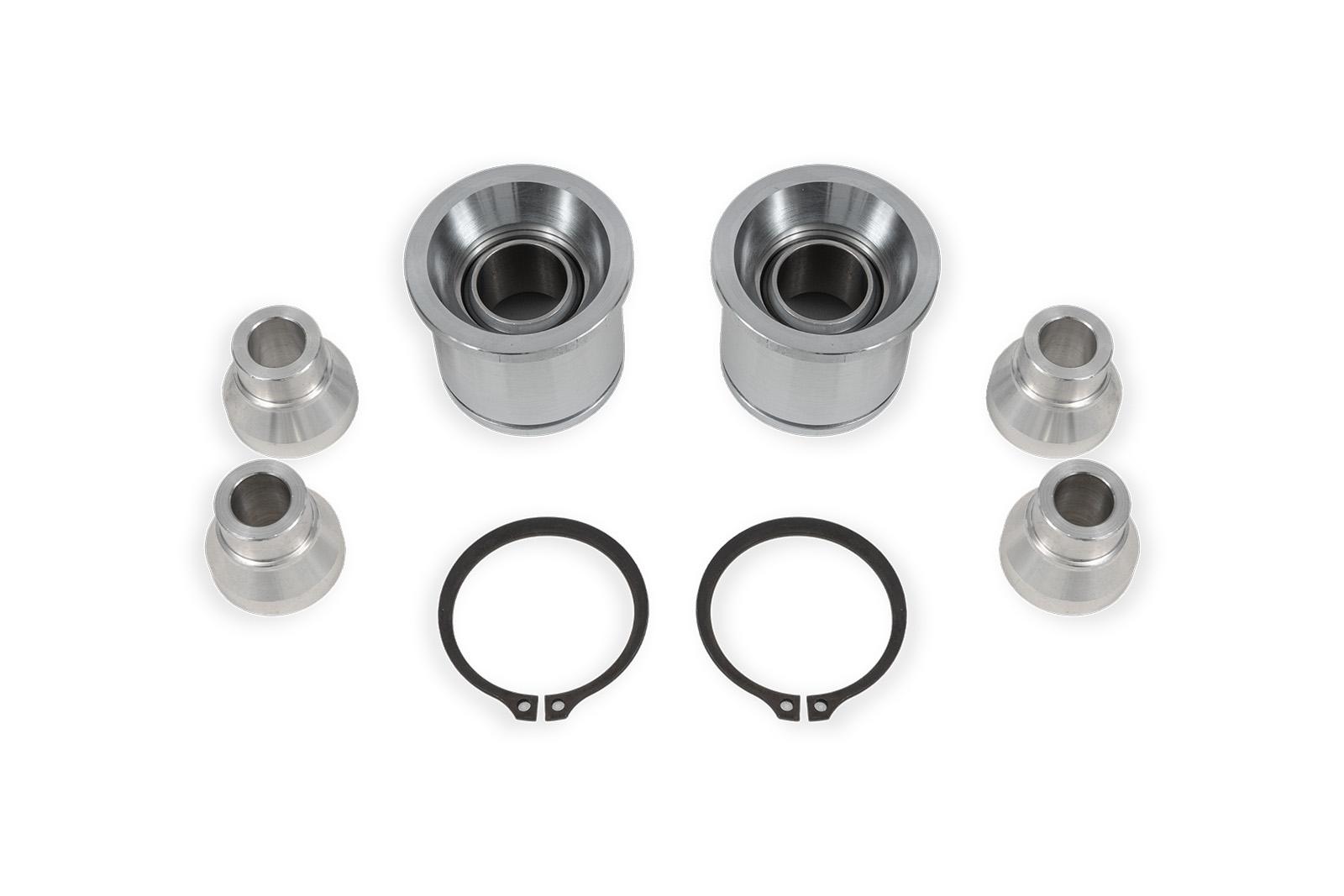

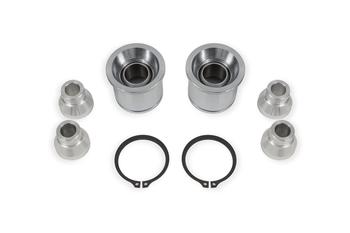

CBK774 - Bearing Kit, Lower Control Arm, Rear

New product released from BMR Suspension
CBK774 - Bearing Kit, Lower Control Arm, Rear
Part Number: CBK774 BMR Suspension Products are Made in USA!
Manufacturer: BMR Suspension
Price: $119.95

FREE SHIPPING!
Qty:
Color:  Bare
CBK774 - Bearing Kit, Lower Control Arm, Rear CBK774 - Bearing Kit, Lower Control Arm, Rear CBK774 - Bearing Kit, Lower Control Arm, Rear CBK774 - Bearing Kit, Lower Control Arm, Rear
Click for larger image

Description

Minimize wheelhop and enhance the rear stability of your 2024 S650 Mustang by eliminating rear lower control arm bushing deflection with a set of Lower Control Arm Spherical Bearings from BMR Suspension. The stock rubber bushings are great for absorbing NVH, but do little for performance. The large spherical bearings in BMR’s rear Lower Control Arm Spherical Bearing Kit simply eliminate bushing deflection, transferring power instead of absorbing it. BMR Suspension’s rear Lower Control Arm Spherical Bushings (CBK774) drastically decreases lower control arm movement by eliminating deflection of the factory rubber bushings. BMR uses heavy-duty 1-inch spherical bearings in machined bearing cups to replace the factory rubber bushings. The cup and bearing assembly presses into the lower control arms. CNC-machined billet aluminum spacers complete the assembly. This allows for a perfect fit and increased performance for any driving style. The 1-inch bearing in the CBK774 has an impressive load rating of 82,800-pounds and has a center ball diameter of 1.5-inches. This bearing is one of the most commonly used 1-inch spherical bearings in the industry, with an impressive track record.


Designed for street performance, drag race, and handling applications, BMR Suspension CBK774 Lower Control Arm Spherical Bushing Kit is the perfect wheelhop solution for any S650 Mustang being used for performance driving. BMR’s Lower Control Arm Spherical Bushings Kit offers huge increases in performance over the stock rubber lower control arm bushings. The OE bushings are designed with air pockets and are made from soft rubber. These “voids”, coupled with soft material produce excessive lower control arm movement during normal and aggressive driving. BMR’s Lower Control Arm Spherical Bushings kit installs in place of the OE rubber bushing, nearly eliminating lower control arm movement by solidly linking the rear portion of the lower control arm to the cradle. This eliminates almost all lower control arm movement, reducing wheelhop and increases handling stability, while giving you a much improved overall feel in any performance driving situation.


BMR Suspension’s CBK774 Lower Control Arm Spherical Bearings are available in a durable silver zinc finish. Installation time is about 2-3 hours. Proudly made in the U.S.A.!

Features

- Fits 2024 S650 Mustangs
- Designed for street performance, drag race, and handling applications
- Replaces the factory lower control arm bushings
- Heavy-duty 1-inch spherical bearings
- Machined bearing cups
- Zinc coated for corrosion protection
- CNC-machined 6061-T6 billet aluminum spacers
- Eliminates rear lower control arm bushings deflection
- Decreases wheelhop
- Increases throttle response
- Increases traction
- Proudly designed in the U.S.A.
- Proudly made in the U.S.A.

Applications

Available Colors


Bare
Bare


Installation

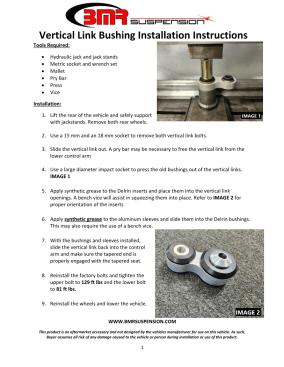

BMR Installation Instructions for CBK774
Click on the page above to view or download installation instructions for CBK774
