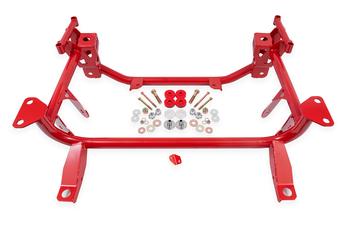

KM761 - K-member, Lightweight, Street/strip Version

New product released from BMR Suspension
KM761 - K-member, Lightweight, Street/strip Version
Part Number: KM761 BMR Suspension Products are Made in USA!
Manufacturer: BMR Suspension
Price: $589.95

FREE SHIPPING!
Qty:
Color:

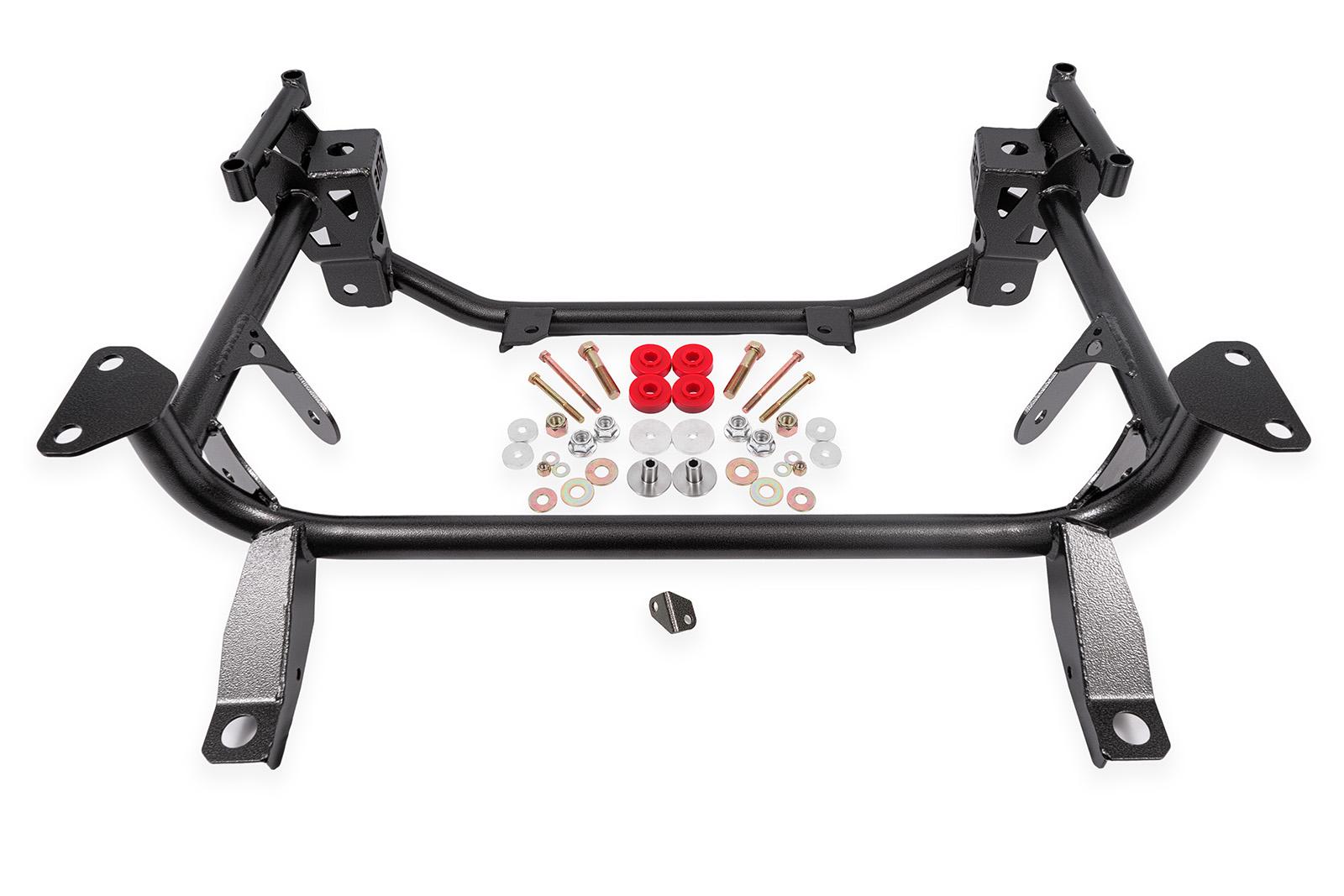

KM761 - K-member, Lightweight, Street/strip Version KM761 - K-member, Lightweight, Street/strip Version
Click for larger image

Description

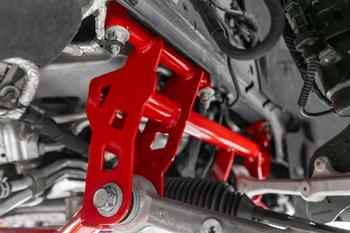

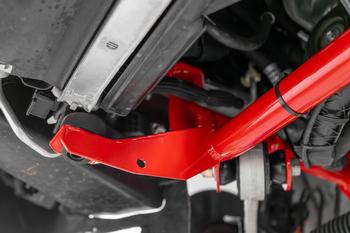

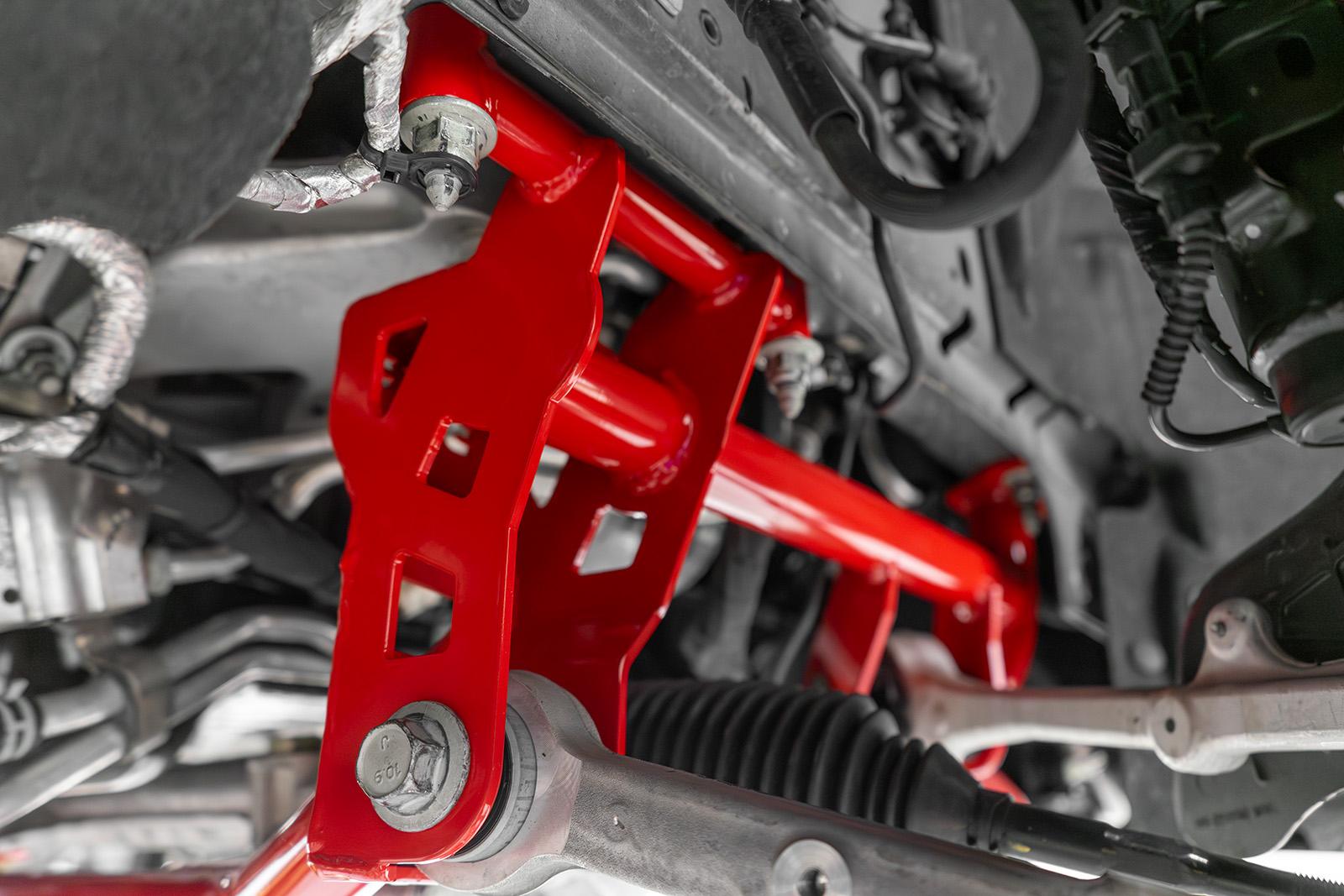

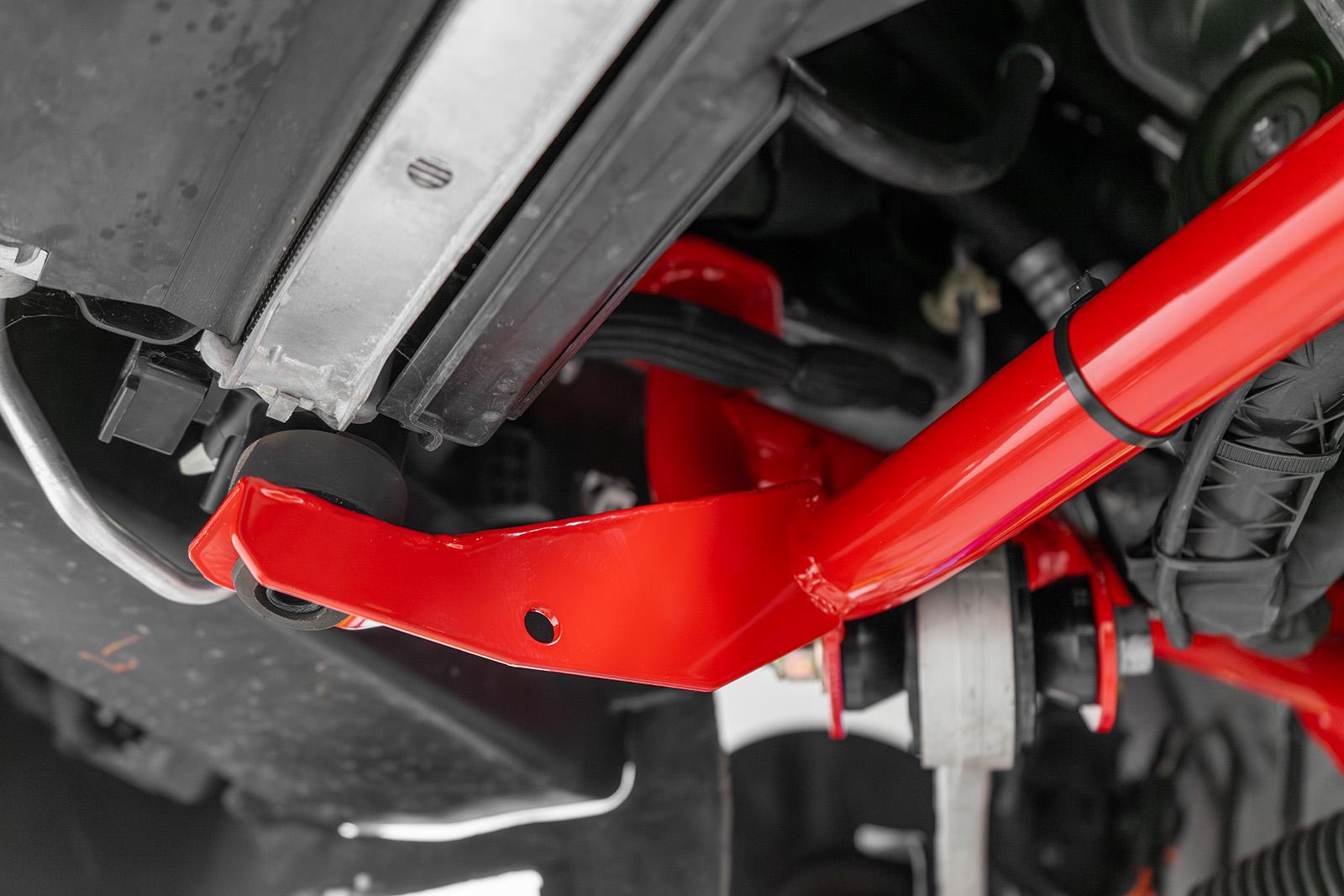

Reduce weight, increase front end rigidity, and add clearance for large-tube headers and turbo kits on your S550 Mustang with a Tubular K-member from BMR Suspension. BMR Tubular K-Members are designed to provide a lightweight alternative to the heavy and bulky factory K-member. Manufactured from 1-inch, 1-1/4-inch, and 1 ½-inch DOM tubing, BMR’s K-members give you a lightweight, extremely strong K-member. Every BMR K-member is 100-percent bolt-in and requires no modifications for fitment.

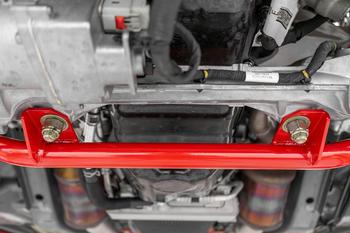

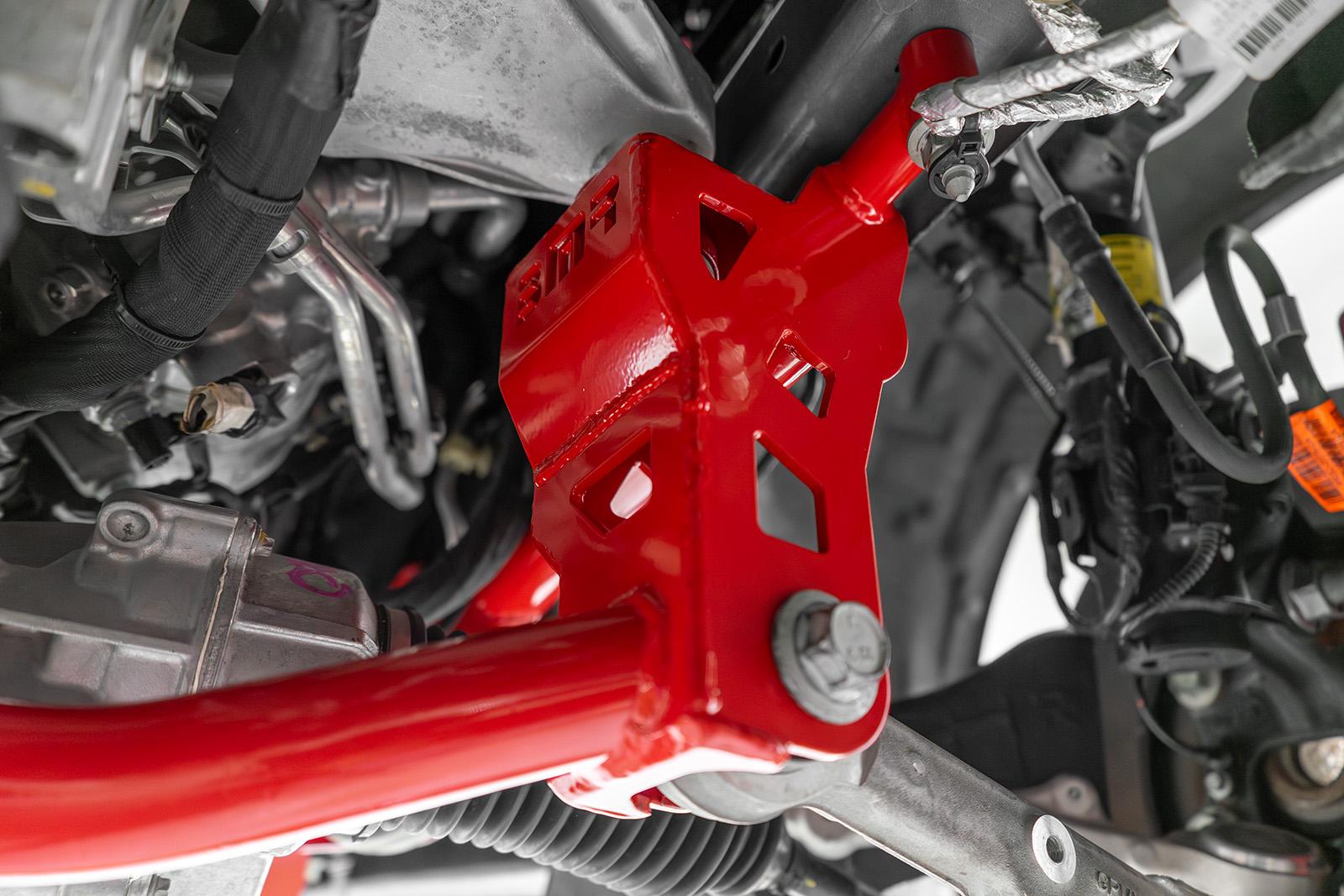

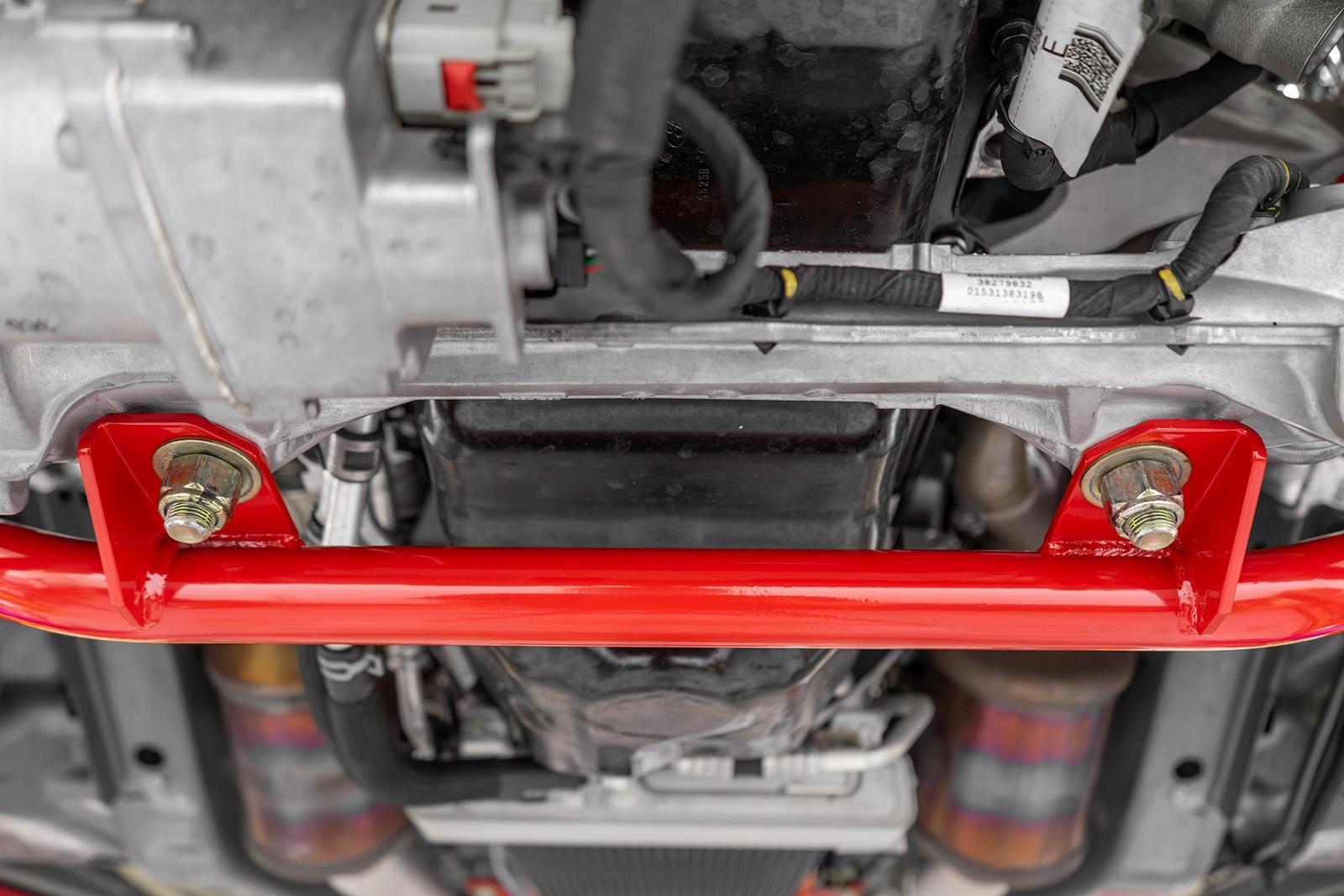

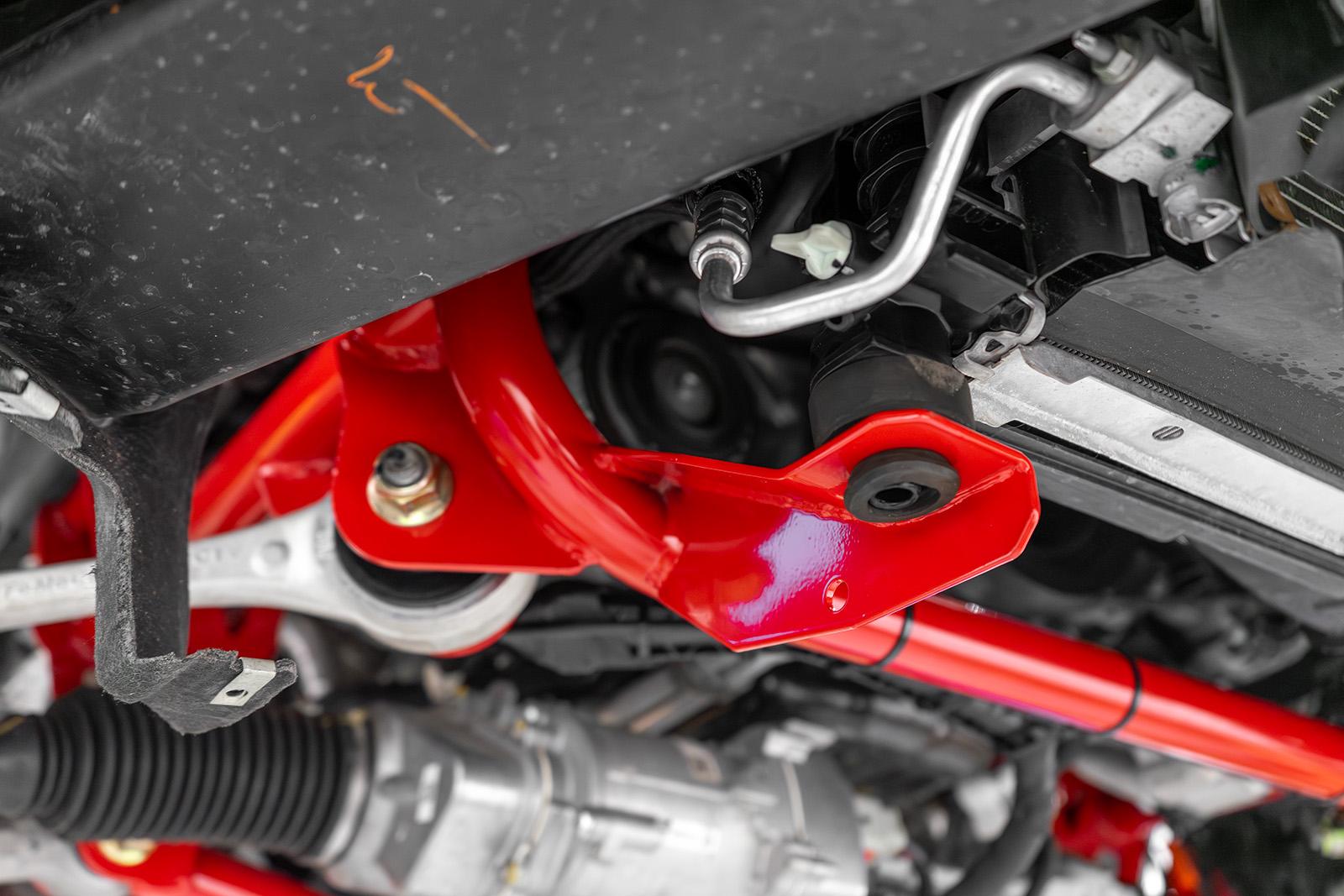

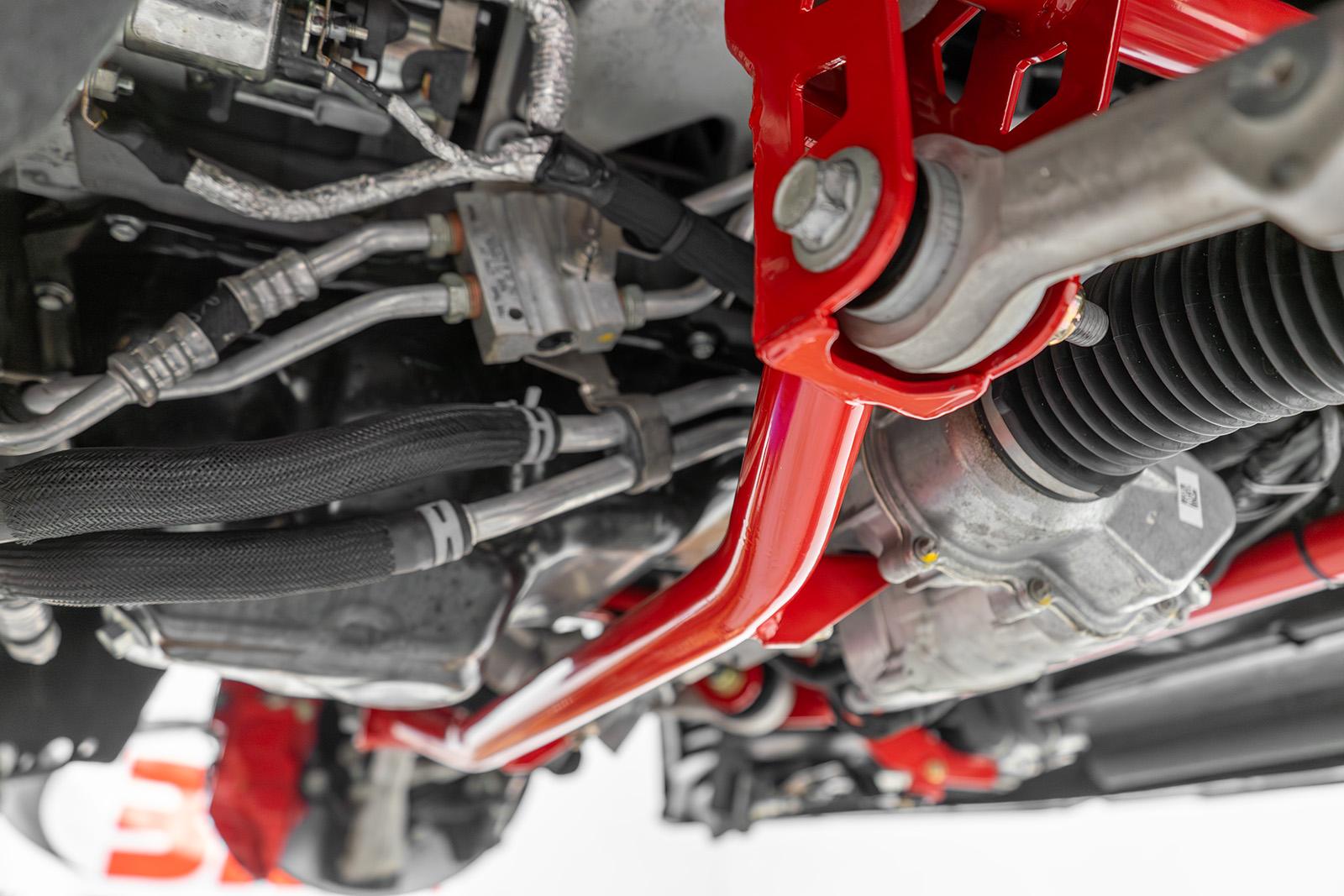

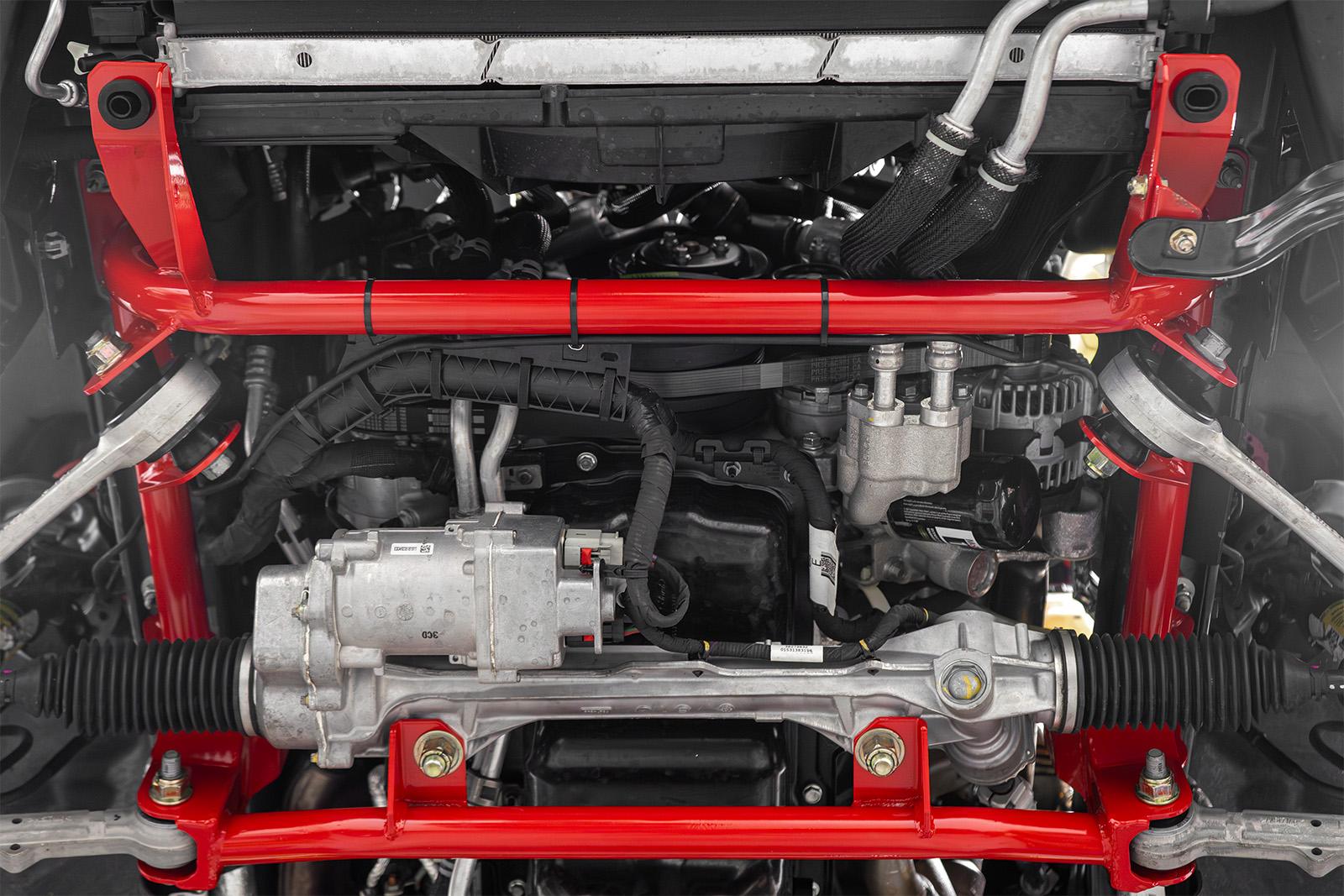

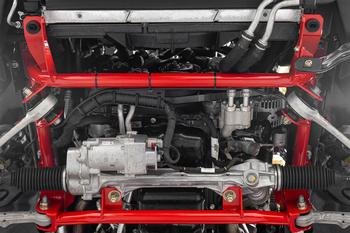

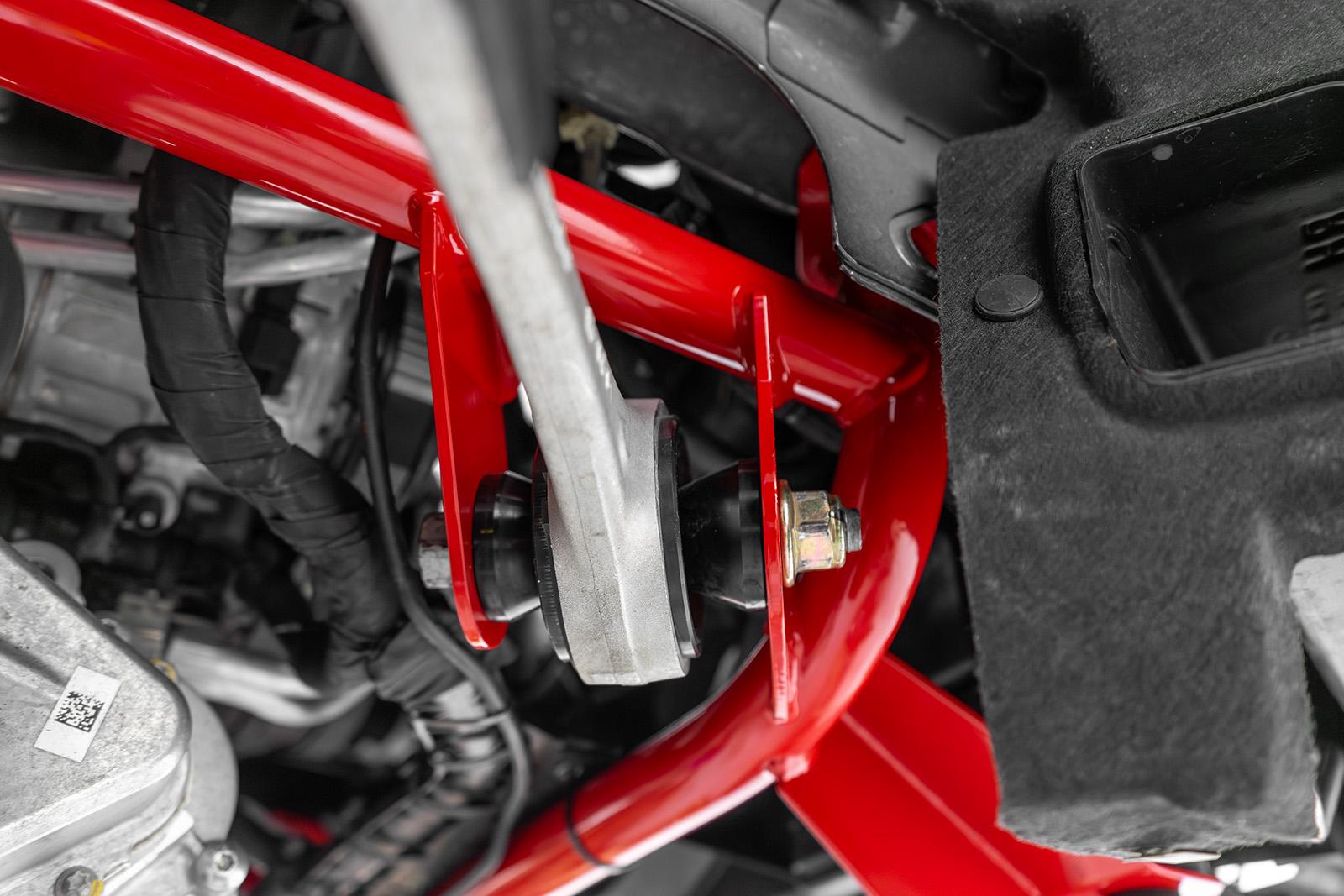

Designed for street performance and drag race, BMR Tubular K-members drop weight and significantly increases frontend structural rigidity. BMR’s unique K-member design features integrated motor mounts that replace the heavy factory mounts. These motor mounts lower the engine for extra underhood clearance. This additional weight reduction allows us to use larger diameter tubing and thicker mounting plates for additional strength over other companies’ K-members. The OE K-member and engine mounts weighs 81.5-pounds, while BMR K-member weighs only 28.5-pounds, giving you a 53-pound weight reduction.

BMR Suspension’s KM761 Tubular K-Member is available in black hammertone and red powdercoat for long-lasting good looks. Installation time is about 3-4 hours. Proudly made in the U.S.A.!


NOTES:

- Comes with spacers to lower the engine for increases hood clearance.

- Lowers engine up to an inch, where possible, when using BMR MM008 engine stands.

- Will not work with MagneRide suspension.

Features

- Designed to fit 2015-2021 S550 Mustangs
- Lighter than competitors K-members
- Manufactured from 1-inch, 1-1/4-inch, and 1 ½-inch DOM tubing
- Works with factory control arms
- Give you a 53-pound reduction over the factory K-member and motor mounts
- Designed to allow up to ¾-inch engine lowering with included BMR motor mounts

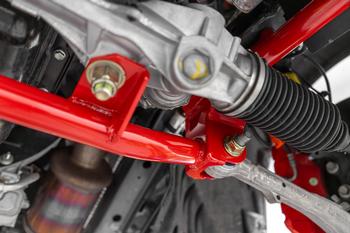

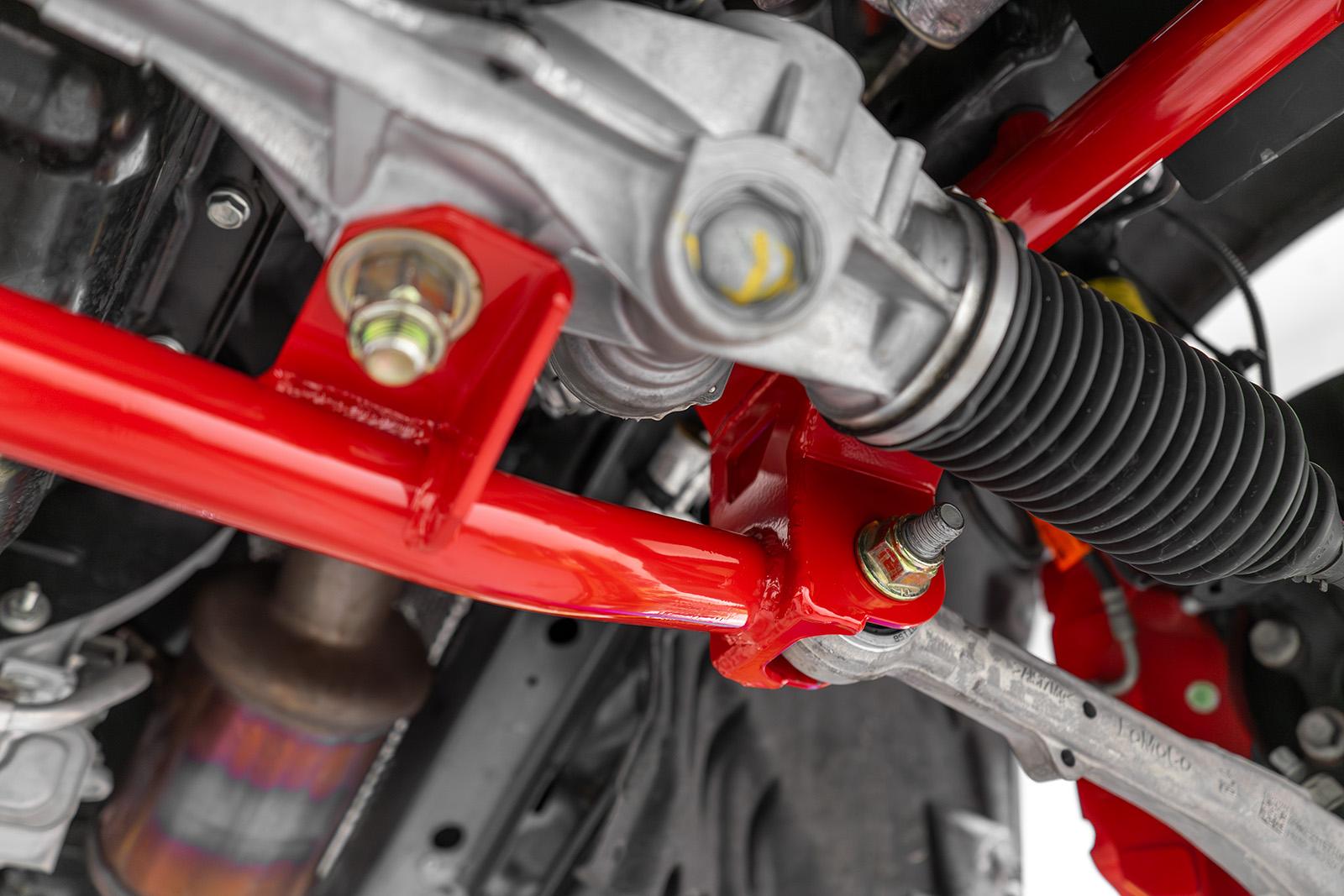

- Compatible with factory or aftermarket steering racks
- Designed for street performance or drag race applications
- Durable powdercoat finish
- 3-4 hour installation time
- Proudly designed in the U.S.A.
- Proudly made in the U.S.A.

Applications

Available Colors


Black Hammertone
Black Hammertone
  Red
Red


Installation

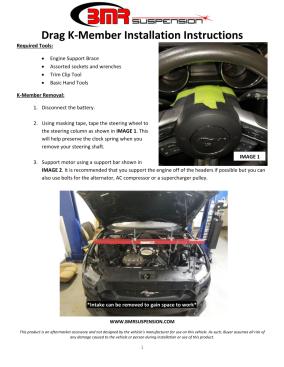

BMR Installation Instructions for KM761
Click on the page above to view or download installation instructions for KM761
