Next BMR Category BMR Suspension - 2005 - 2014 Mustang - TCA020
TCA020

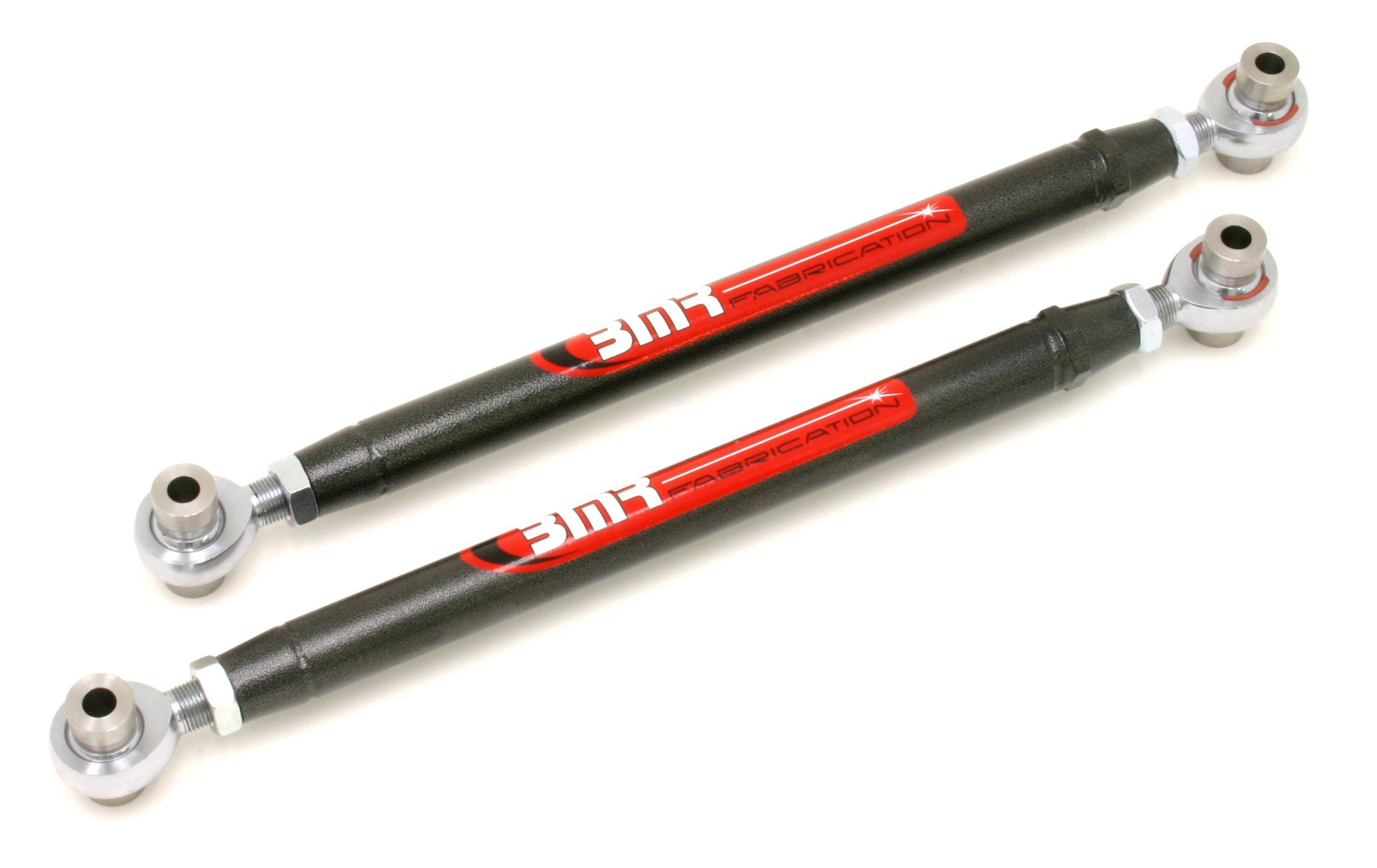

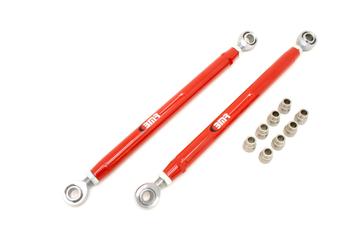

TCA020 - Lower Control Arms, DOM, Double Adjustable, Rod Ends

TCA020 - Lower Control Arms, DOM, Double Adjustable, Rod Ends
Part Number: TCA020 BMR Suspension Products are Made in USA!
Manufacturer: BMR Suspension
Price: $319.95

FREE SHIPPING!
Qty:
Color:
TCA020 - Lower Control Arms, DOM, Double Adjustable, Rod Ends TCA020 - Lower Control Arms, DOM, Double Adjustable, Rod Ends
Click for larger image

Description

Launching harder, reducing wheel hop, and adding cornering consistency to your 2005-2014 Mustang is easy with lower control arms from BMR Suspension. Stock stamped steel control arms with soft rubber bushings deflect under load and absorb power instead of transferring it to the tires. BMR’s rod end, double-adjustable tubular control arms for S197 Mustangs (TCA020) are TIG-welded using heavy-duty DOM steel tubing. This design gives you a strong control arm that greatly improves performance.

BMR Suspension designed the TCA020 to excel in street performance, drag race, and road race applications. The stock control arms flex under cornering loads giving you inconsistent handling characteristics. Combine this with soft bushings that have massive amounts of deflection and you’re left with poor performance. The TCA020’s heavy-duty construction eliminates control arm flex, giving you much improved repeatability on the street, starting line, or in the corners. BMR’s heavy-duty rod ends are designed to solidly link the rearend to the body, eliminate deflection and wasted power. Our rod ends will stand up to high loads of any performance environment, offering all of the bind-free suspension articulation needed for great handling. These are the perfect upgrade for the enthusiast looking to greatly improve performance without NVH levels being a concern. When performance is a must, rely on BMR Suspension!

BMR Suspension’s TCA020 double-adjustable rod end lower control arms are available in red and black hammertone powdercoat for long-lasting good looks. Installation time is about 1-2 hours. Proudly made in the U.S.A.

*To retain the factory geometry, ensure the offset end of the LCA is installed on the axle side, with the offset portion of the bushing facing towards the rear differential.

Features

- Fits all S197 Mustangs (2005-2014)
- On-car adjustable design
- Heavy-duty Viking Performance Teflon-lines rod ends
- All 304 stainless steel rod end spacers
- TIG-welded DOM steel tubing
- Dramatically reduces control arms flex
- Eliminates bushing deflection
- Massive increase is suspension articulation
- Designed for street performance, drag race, and road race applications
- Durable powdercoat finish
- 1-2 hour installation time
- Proudly designed in the U.S.A.
- Proudly made in the U.S.A.

Applications

2005 - 2014 Ford Mustang

Available Colors


Black Hammertone
Black Hammertone
  Red
Red


Installation

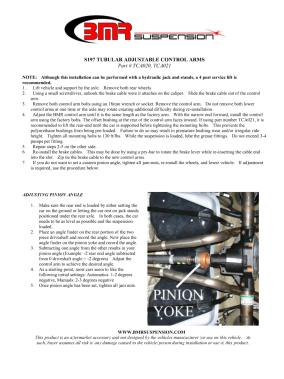

BMR Installation Instructions for TCA020
Click on the page above to view or download installation instructions for TCA020

Related Kit/Combos


View Details Drag Race Package (Level 2)
BMR Suspension has taken the guesswork out of making huge launch improvements to the S197 Mustang, and put it all in one convenient package. Countless hours of design, engineering, and track ...
$1829.00
Part#: DRP002
Application: 2005 - 2010 Mustang
View Details Handling Performance Package (Level 2)
BMR Suspension has taken the guesswork out of making significant handling improvements to the 2005-2010 S197 Mustang, and put it in one convenient package. Countless hours of design, enginee ...
$2389.00
Part#: HPP003
Application: 2005 - 2010 Mustang
View Details Drag Race Package (Level 2)
BMR Suspension has taken the guesswork out of making huge launch improvements to the S197 Mustang, and put it all in one convenient package. Countless hours of design, engineering, and track ...
$1829.00
Part#: DRP002
Application: 2007 - 2010 Shelby GT500

CUSTOMERS WHO PURCHASED THIS ITEM, ALSO PURCHASED...
AAS001
AAS001
$69.95

2005-2014 Mustang
A-arm support brace
View Product Details
FC001
FC001
$34.95

2005-2014 Mustang
Camber Bolts, Front 2 degree offset
View Product Details
UCM001
UCM001
$109.95

2005-2014 Mustang
Upper control arm mount
View Product Details
UTCA018
UTCA018
$129.95

2005-2014 Mustang
Upper control arms, DOM, non-adjustable, spherical bearings
View Product Details
UTCA020
UTCA020
$159.95

2005-2014 Mustang

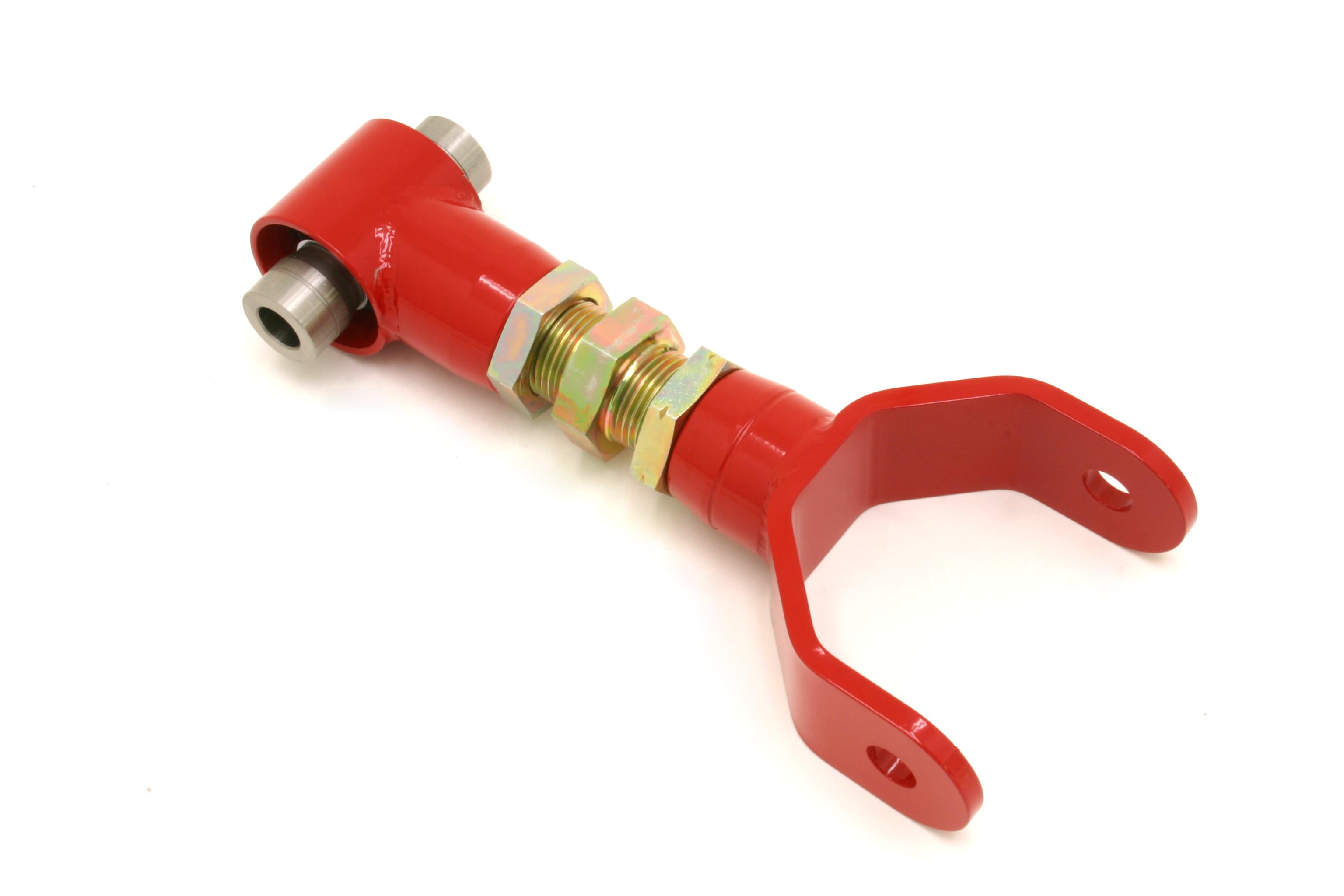

Upper control arms, DOM, on-car adjustable, spherical bearings
